Ecna - Multi Purpose drones and accessories

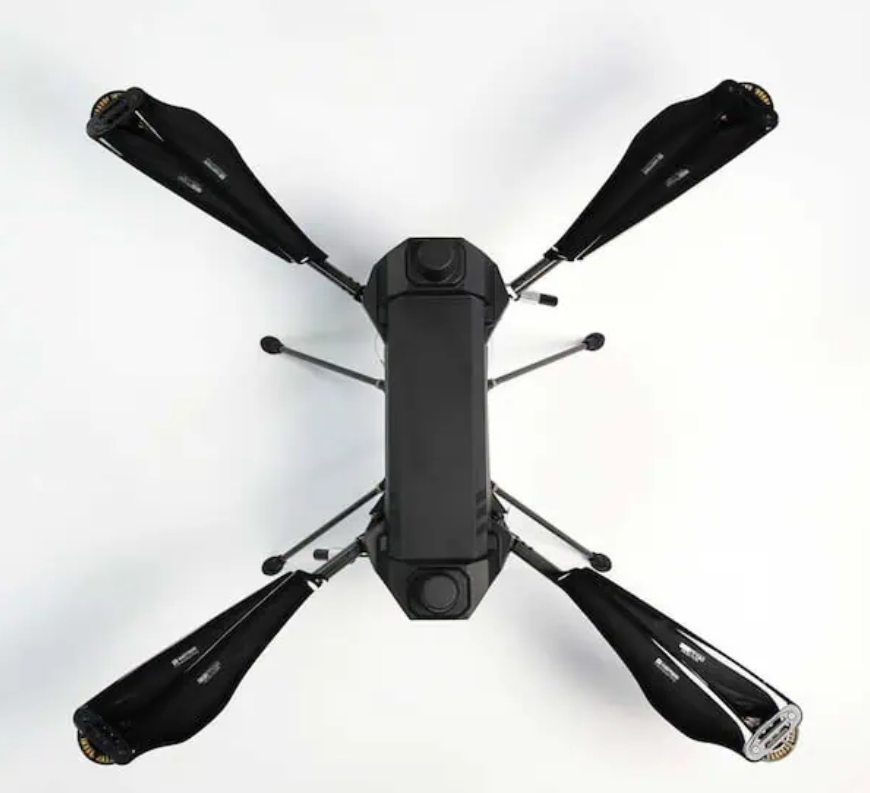

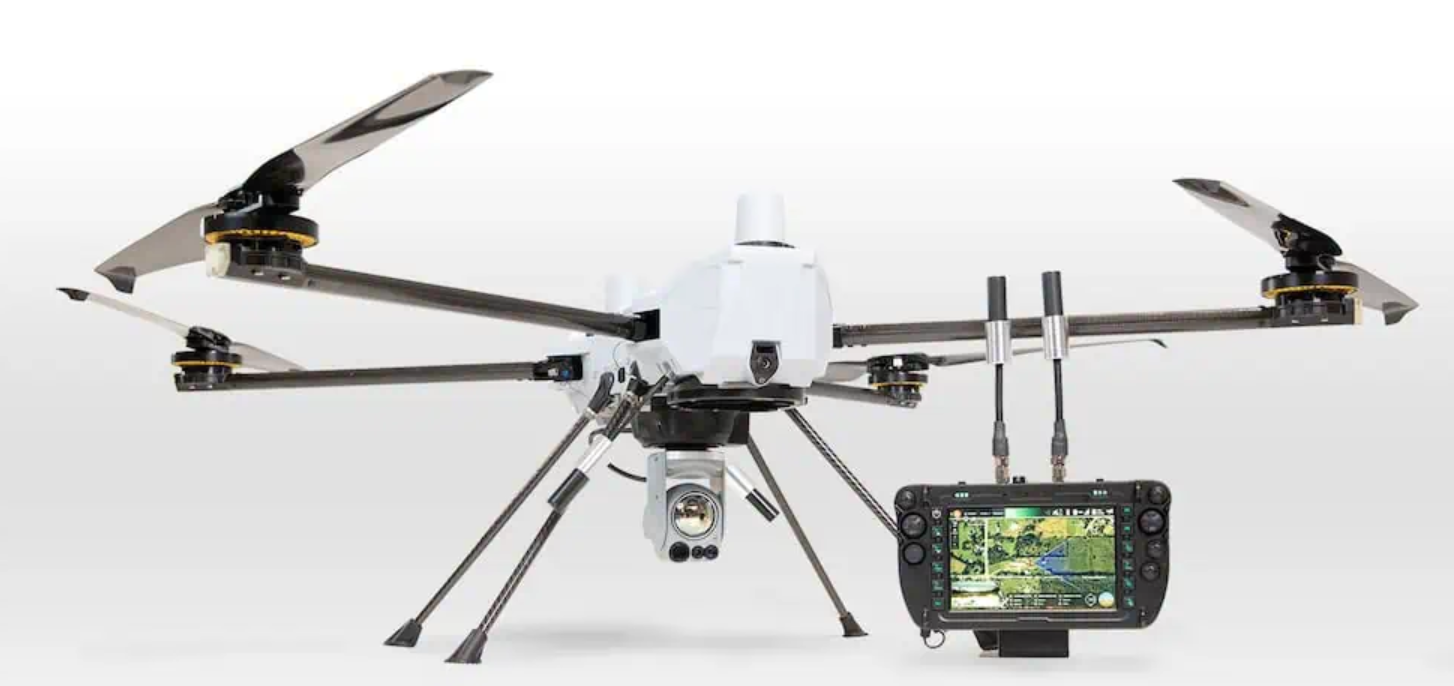

C100 Heavy-Lift Quadcopter Foldable Drone

C100 Heavy-Lift Quadcopter Foldable Drone

Regular price €6.399,00 EUR
Regular price €7.800,00 EUR Sale price €6.399,00 EUR
Sale Sold out
Quantity

The C100 is a portable, heavy-lift quadcopter designed for maximum endurance, capable of carrying payloads on missions lasting up to 74 minutes. With its compact, low-SWaP (size, weight, and power) design, the drone folds neatly into a small rucksack and can be deployed and airborne in less than two minutes.

The C100 supports payloads of up to 21.4 lbs and offers universal third-party payload integration, compatible with a wide range of protocols. Standard options include Trillium’s military-grade EO/IR gimbals, while a dedicated fixed flight camera provides first-person view (FPV) for enhanced operator navigation. Advanced autonomy features include object detection, visual-inertial odometry for GNSS-denied environments, and vision-based collision avoidance.

Built on a modular, future-proof open architecture, the C100 allows seamless integration of new hardware and powertrain upgrades. The system incorporates DIU Blue UAS–approved avionics and an AES-256 encrypted datalink, ensuring secure and reliable communications in the most demanding mission environments.

Shipping:

We will calculate the shipping cost after the purchase. Flat fee is available for Europe and USA only with free delivery or pick up in Netherlands and Ukraine.

Technical Specifications:

Dimensions 24” x 15” x 8” (folded)
64” x 65” x 11” (operational)
Weight 21.4 lbs (9.7kg)
Endurance 74+ Minutes with Payload (Long Endurance Battery)
60+ Minutes with Payload (Short Endurance Battery)
Max Payload Capacity 10 lbs (4.5kg)
Range 6.2+ miles (10+ km)
Max Flight Speed 40 mph (64.8 km/h)

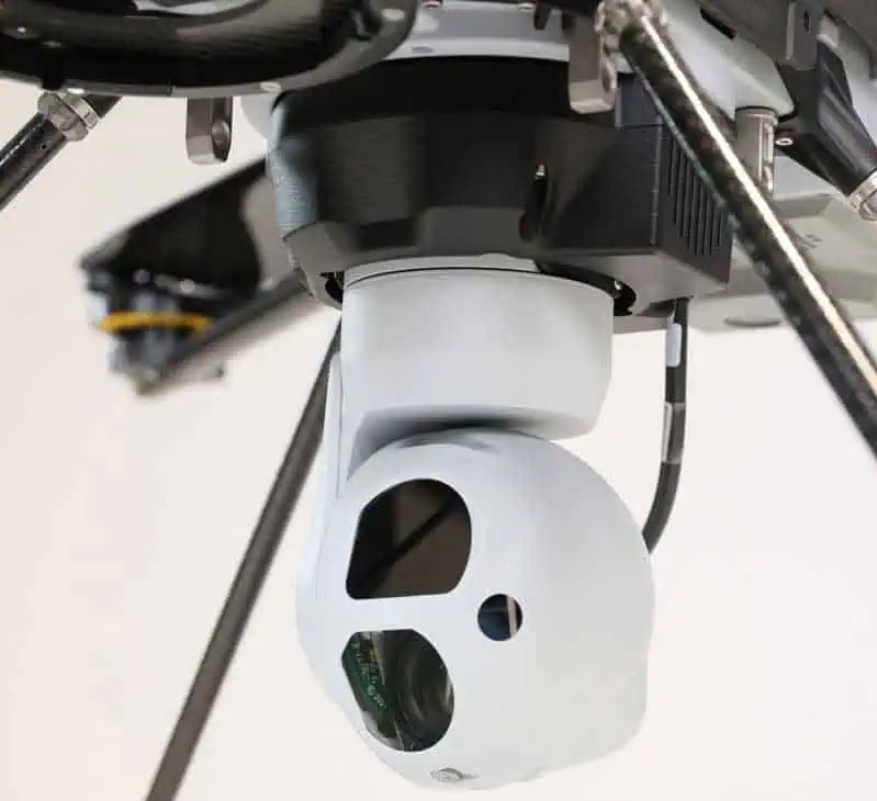

Payload Option 1:
(Trillium HD40-LV EO/IR)
720p Global Shutter Visible Camera
Resolution: 1280 x 720
Field of View: 54°–4.9° up to 2.5° Digital

LWIR 30 Hz 640 with 24 mm lens
Resolution: 640 x 512
Field of View: 18.2° up to 4.6° Digital

Optional 850 nm laser pointer
Payload Option 2:
(Trillium HD40-XV EO 30x zoom)
720p Global Shutter Visible Camera
Resolution: 1280 x 720
Field of View: 54.3°–1.7° up to 1.0° Digital
View full details
