100L Agriculture Drone Spray Fumigation Machine for Sale 8-Axis Uav Drone Agricultural Spraying Frame Drone

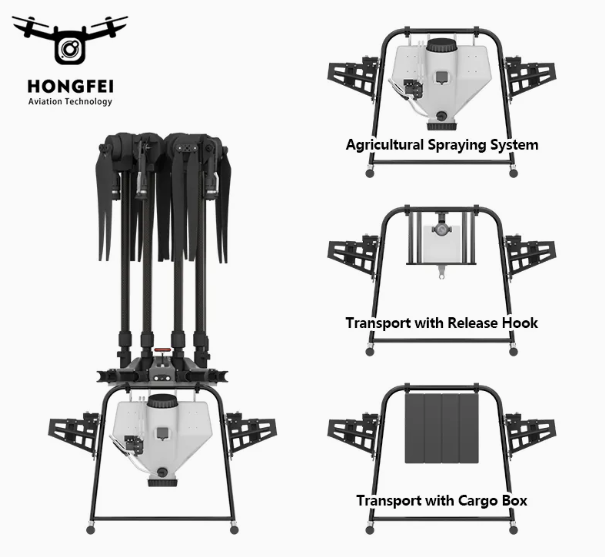

The integrated spraying, spreading, and transportation agricultural drone offers multiple functionalities, capable of being equipped with one of the following three basic systems: agricultural spraying system, agricultural spreading system, or transportation system. This adaptability allows the drone to seamlessly switch between agricultural spraying, spreading, and industry transportation tasks, demonstrating its efficiency and feasibility across various operational environments.

Equipped with 18S 30000mAh intelligent batteries and a rapid intelligent charger, this drone is optimized for quick charging and continuous operation. Its ultra-fast charging capability ensures that agricultural tasks can proceed without delay.
· Charging and Discharging: Unlimited charging and discharging times within one year.
· Anti-Collision: Anti-collision, shockproof, anti-penetration, and over-temperature protection.
· Auto Internal Balancing: Automatic internal balancing of battery voltage for optimal performance.

For Agricultural Drone	For Transport Drone
· 18S 30000mAh Lithium-polymer Intelligent battery*2	· 18S 42000mAh Lithium-polymer Intelligent battery*4
· Dual-channel high voltage intelligent charger*1	· Dual-channel high voltage intelligent charger*2



Aerial Platform		Spraying System
Dimensions (Unfolded)	3350*3350*990mm (Propeller Folded)	Water Tank Capacity	100L
	4605*4605*990mm (Propeller Unfolded)	Nozzle Type	Centrifugal Nozzles*4
Dimensions (Folded)	1010*870*2320mm	Spray Width	8-15m
Drone Weight	74kg (Excluding Battery)	Atomizing Size	30-500µm
	104kg (Including Battery)	Max. System Flow Rate	24L/min
Waterproof Grade	IP67	Spraying Efficiency	35hectares/hour
Flight Parameters		Spreading System
Max. Takeoff Weight	254kg	Spreader Box Capacity	120kg
Max. Flight Speed	15m/s	Applicable Granule Size	1-10mm
Hovering Duration	20mins (with No-Load)	Power System
	8mins (with Full-Load)	Battery Model	18S 30000mAh*2
